Before diving into the intricate operations of container ports, let me introduce you to the largest containership in the world: the Ever Ace, built by a Taiwan-based company for Evergreen Marine Corporation. This colossal vessel is a true marvel of engineering, stretching 400 meters in length and 62 meters in width, with a deck area equivalent to four football fields. To put its size into perspective, it surpasses the length of the largest aircraft carrier by 63 meters. With a maximum capacity of 23,992 containers and a carrying capacity of 240,000 tons, this ship is a logistical beast.
The Challenge of Moving Giants
Operating a containership of this magnitude is no small feat. The first challenge is loading the massive number of containers onto the ship — a complex process. Imagine this vessel departing from Singapore en route to Rotterdam, Europe’s largest and deepest port, which is well-equipped to handle such giants. Assuming the journey is uneventful, with no unexpected delays like a Suez Canal blockage, the ship arrives at Rotterdam. These ships are so massive that the Dutch had to expand the Port of Rotterdam to accommodate them. This involved reclaiming large swaths of land from the sea, essentially extending the Netherlands itself.
Here, the real magic begins. Towering cranes unload containers from the ship and stack them in designated buffer zones onshore, while new containers are simultaneously loaded. Remarkably, port operators claim they can unload almost 24,000 containers in 24 hours — a stunning achievement, even if it occasionally takes a bit longer. From the buffer zones, specialized trucks transport the containers a few kilometers to a distribution hub. From there, trucks carry the cargo to its final destinations across Europe. The entire operation is both highly efficient and astonishingly fast.
Automation at Rotterdam Port
Rotterdam is renowned as Europe’s most automated port, leveraging advanced technologies to streamline operations. Once containers are offloaded by cranes, they are placed on autonomous trucks — rugged vehicles designed for port operations. However, these vehicles, while impressive, aren’t fully autonomous according to SAE J3016 standards for Level 4 autonomy, which requires vehicles to operate independently under all conditions.
These trucks rely on a network of 18,000 transponders embedded in the port’s 17-kilometer road system. Using these lipstick-shaped transponders installed in the road deck, the trucks navigate the port’s intricate layout with precision. While they excel at following pre-determined routes, they lack proximity sensors or LIDAR systems to detect obstacles. To ensure safety, personnel are strictly prohibited from entering these operational zones.
When the system runs smoothly, it is highly efficient. However, any breakdown brings operations to a standstill, as human intervention becomes necessary. This highlights what the Dutch term a “breaking advantage” — being the first to embrace new technology, even if it entails challenges with future upgrades. The port itself serves as a dynamic incubator for cutting-edge technologies.
A Dutch Tradition of Early Adoption
This “breaking advantage” isn’t new for the Dutch. Take Amsterdam’s traffic lights, introduced in November 1932 as Europe’s first. These early lights used mechanical relays housed in boxes on street corners. By the summer a few years later, overheating caused by the sun led to frequent malfunctions. Other cities, learning from Amsterdam’s experience, implemented improved transistor-based systems. Similarly, Rotterdam’s current automated vehicles will eventually give way to more advanced autonomous systems.
The Path Forward
Asian ports, such as Singapore, are leading the way in deploying fully autonomous vehicles with advanced capabilities. In Singapore, self-driving trucks equipped with software developed by Boston-based Venti Technologies operate 24 hours a day. Venti acknowledges that managing autonomous systems in controlled environments like ports is significantly less complex than navigating busy urban areas.
This is precisely where new Level 4 (L4) autonomous vehicles will be deployed and optimized — in locations such as ports, airports, industrial zones, university campuses, and suburban areas. Rotterdam, in particular, has the opportunity to catch up. And it will, no doubt. The adoption of L4 autonomous trucks could revolutionize operations, significantly reducing waiting times for truck drivers picking up cargo. Currently, drivers often endure hours-long delays before their containers are loaded. Emerging technologies promise to streamline operations, enabling trucks to collect cargo and depart within minutes.
Intermediate Steps: The Container Exchange Route (CER)

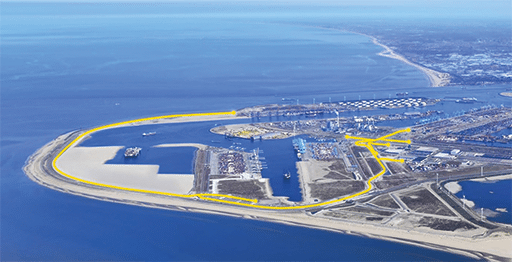

In preparation for full automation, Rotterdam has implemented an intermediate solution: the Container Exchange Route (CER). This 17-kilometer closed road network connects terminals, depots, distribution centers, and inspection facilities. Nowadays vehicles transport containers along this network, enhancing safety, efficiency, and sustainability.
The CER reduces public road congestion, improves traffic flow, and minimizes emissions. It also enhances security, as the closed system limits opportunities for tampering or theft — a significant step in combating organized crime and drug trafficking.
The Future: Smarter Ports and Autonomous Roads
While the CER has improved operations, the introduction of true autonomous Level 4 trucks will revolutionize the port. Waiting times for drivers will plummet, and the entire cargo-handling process will become more seamless. Eventually, autonomous trucks may even extend their reach to public roads, creating a completely new environment for logistics across Europe — a story still unfolding.
